Rancilio Old-Style Steam/Water Valve Rebuild Kit
Complete reseal kit for the old-style steam/water valves used on Rancilio’s commercial S-20*, Millennium, and Z-9/Z-11 series, stops leaks at the wand tip and around the knob, restoring the valve without replacing the whole assembly.
SPECIFICATIONS

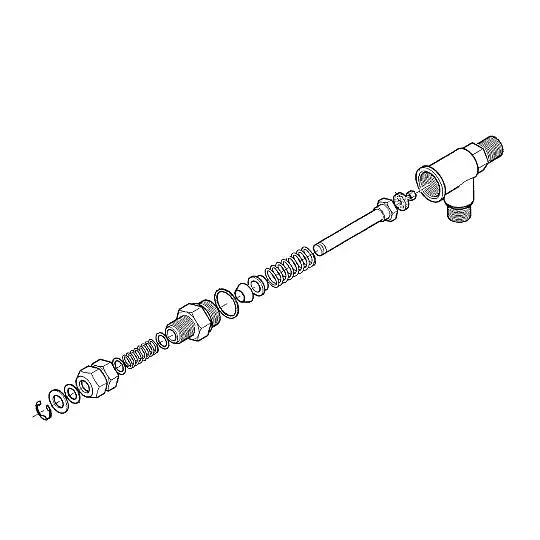

- 1 x (F_419) C-Clip
- 1 x (R_33) Rancilio Steam/water Valve Body Copper Gasket
- 1 x (R_34) Rancilio Steam Valve Conical Gasket
- 1 x (R_35) Rancilio Steam/water Valve Rear Spring
- 1 x (R_36) Rancilio Valve Seat Seal – R_1014
- 1 x (R_47) Rancilio Steam Valve/Group Spring
- 2 x (R_68) Rancilio Steam Valve Spring Washer
- 1 x (R_613) Rancilio Epoca/Classe Steam/water Valve PTFE Washer
COMPATIBILITY
- Fits: Rancilio commercial S-20*, Millennium, and Z-9/Z-11 series old-style steam valves
- Works with: for a full valve and wand reseal, pair with the wand rebuild kit, RKIT4
INSTALLATION
Best suited to someone comfortable disassembling a valve body, no instructions are included, so basic mechanical aptitude or a technician is recommended.
PRO TIPS
- This kit only reseals the tip and knob area of the valve, if the leak is where the steam/water wand meets the valve body itself, you’ll need RKIT4 (the wand rebuild kit) instead.
