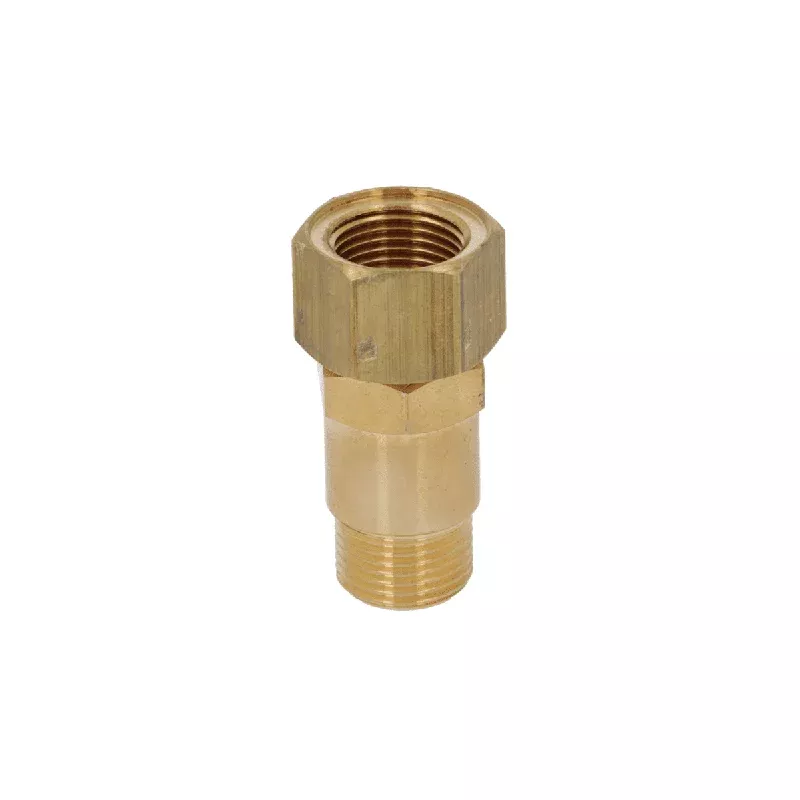

Rancilio Check Valve, Two-Group Epoca/Classe Series
OEM check valve assembly (Rancilio 10060448) for two-group Epoca and Classe machines. The kit includes the o-ring, copper gas gasket, stainless valve poppet, spring, and brass fittings needed for a complete rebuild.
SPECIFICATIONS
- O-ring: 3.69 x 1.78mm, green
- Gasket: 1/4″ copper gas gasket
- Poppet: stainless steel (“funghetto”)
- Includes matching spring and brass fittings
COMPATIBILITY
- Fits: Epoca S/07, Epoca E/07, Classe 6 E/07, Classe 6 S/07, Classe 8 DE/07, Classe 8 S, Classe 8 S/07, Classe 9 S, Classe 10 (two-group models)
- Replaces: Rancilio OEM 10060448 (complete check valve kit: o-ring, copper gasket, poppet, spring, and fittings)
- Works with: R_1025 copper gasket, may be required
INSTALLATION
Take extra care not to damage the three-way fitting during removal; it is out of production, so a damaged fitting cannot be replaced new.
PRO TIPS
- Back the three-way fitting out slowly and do not over-torque on reassembly, since it is no longer manufactured, a cracked or stripped fitting means hunting for a used one.
