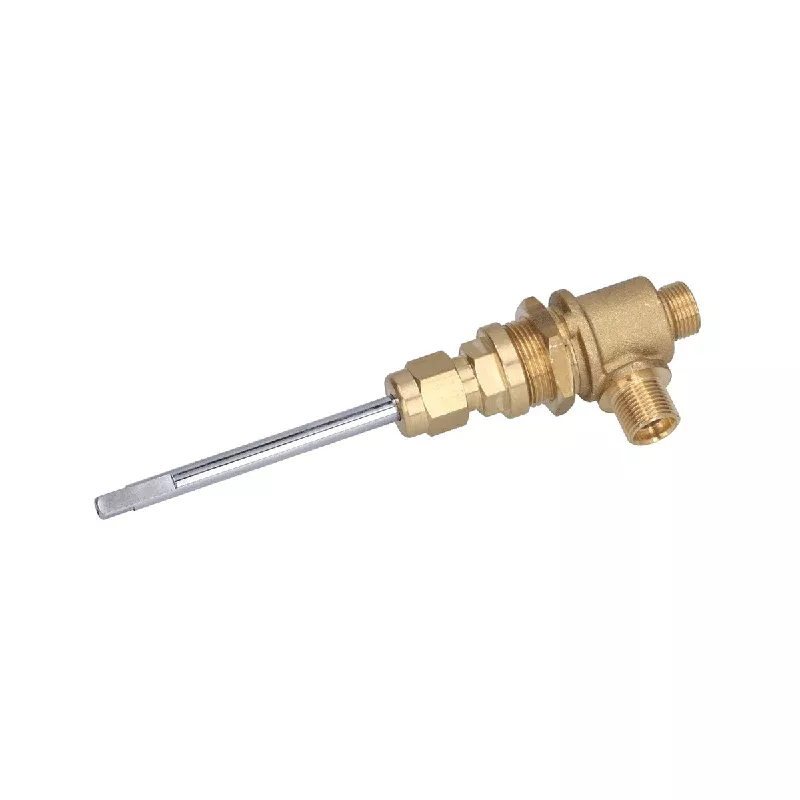

Complete CMA Steam/Water Valve Assembly
Complete steam/water valve assembly for CMA, Astoria, Bravo, Laurentis, Rio, and Wega equipment, an easy fix for leaks at the steam wand tip or the front of the valve.
SPECIFICATIONS
- 145mm shaft; includes valve body, fixing nut, and steam/water valve insert assembly; this is the longest and oldest version, measuring 180mm from the rear 3/8″ BSP threads to the end of the stem in the closed position; includes the 80 SH gasket (AS_38) and a round copper washer (AS_81)
COMPATIBILITY
- Fits: older Astoria Argenta, Denise, Lisa, and Vania models; Wega Atlas and Orion; most CMA-built machines from Astoria, Bravo, Laurentis, Rio, and Wega
- Replaces: complete OEM steam/water valve assemblies (longest/oldest shaft version)
- Works with: 80 SH gasket (AS_38) and round copper washer (AS_81), both included
INSTALLATION
Simple, complete assembly swap designed for easy DIY installation.
PRO TIPS
- This is the longest/oldest shaft version (180mm from the rear threads to the stem end, closed), measure your existing valve before ordering to confirm you need this length rather than a shorter later-production version.
